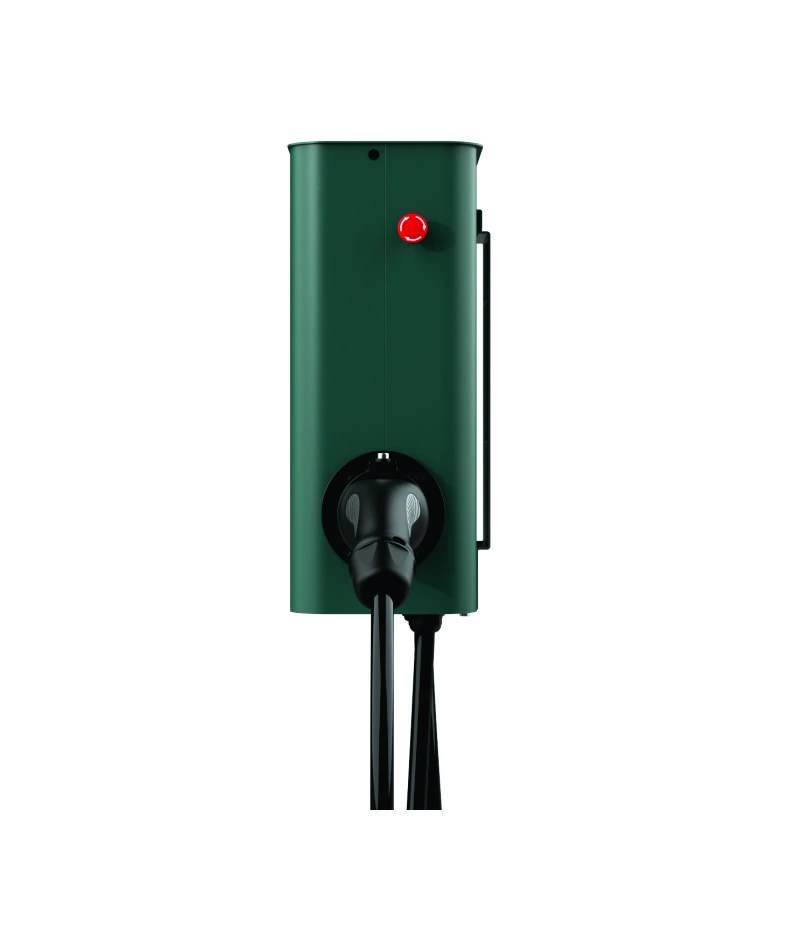

11KW Evamp INFINI
Power Rating: 11KW
Connector Type: 2
Compatibility:
Description
The 11kW Type-2 AC EV Charger is a compact three-phase charging solution for residential societies, offices, and commercial hubs. Operating on a 415V supply with 16A output, it provides efficient and reliable charging for medium-sized EVs.
Equipped with OCPP 1.6J compatibility, Wi-Fi/4G connectivity, and smart CMS integration, it enables remote monitoring, OTA updates, RFID access, and energy tracking.
With built-in Type-2 RCCB protection, earth fault detection, and emergency shutdown, it ensures maximum safety and compliance with AIS 138-1 and IEC standards— making it a future-ready, user-friendly charging solution.
Specifications
| Input Supply Requirement | Three Phase L1+L2+L3+N+PE |
|---|---|
| Operating Voltage | 415Vac (3Ph/N/E) |
| Charging Voltage | 320–520Vac (Three Phase) / 80–280Vac (Single Phase) |
| Max Charging Current | 16A / 32A (Configurable) |
| Max Power Output | 11KW |
| Socket Type / Output Connector | Type 2 Gun, IEC 62196-2 |
| Vehicles Charged | 4W |
| Ingress Protection | IP54 / IK10 (Standard for outdoor EV chargers) |
| Operating Temperature | –25°C to +55°C |
| Energy Metering | Class-1 Energy Metering (IEC 62052-11, IEC 62053-21/23) |
| Ideal Consumption | < 3W (standby) |
| Authentication | RFID (ISO/IEC 14443A/B, MIFARE 1K), Mobile App, OCPP 1.6J / 2.0 |
| Connectivity | Wi-Fi 2.4GHz, 3G/4G LTE (M2M SIM), GSM |
| Screen / User Interface | 4-Inch Touch Screen Display |
| Emergency Shutdown Button | Yes |
| Mounting | Wall Mount / Pole Mount |
Frequently Asked Questions
Is this charger suitable for apartment or society parking?
Yes! The 11kW charger is great for residential or semi-commercial use with 3-phase supply.
Can I use the 22kW charger for fast public charging?
Absolutely! It’s built for quick turnaround in public spaces like malls, offices, or fleet hubs.
How do I start charging?
📲 Just scan a QR with the Mobilane app or tap your RFID card—easy and secure
What if my EV doesn’t support 11kW charging?
⚡ No worries! The charger will auto-adjust to your EV’s max capacity, so it’s always safe.
Will I get usage and error data on my phone or CMS?
Yes! The charger shares charging status, errors, network signal, and energy use directly to your Wi-Fi or 4G SIM
