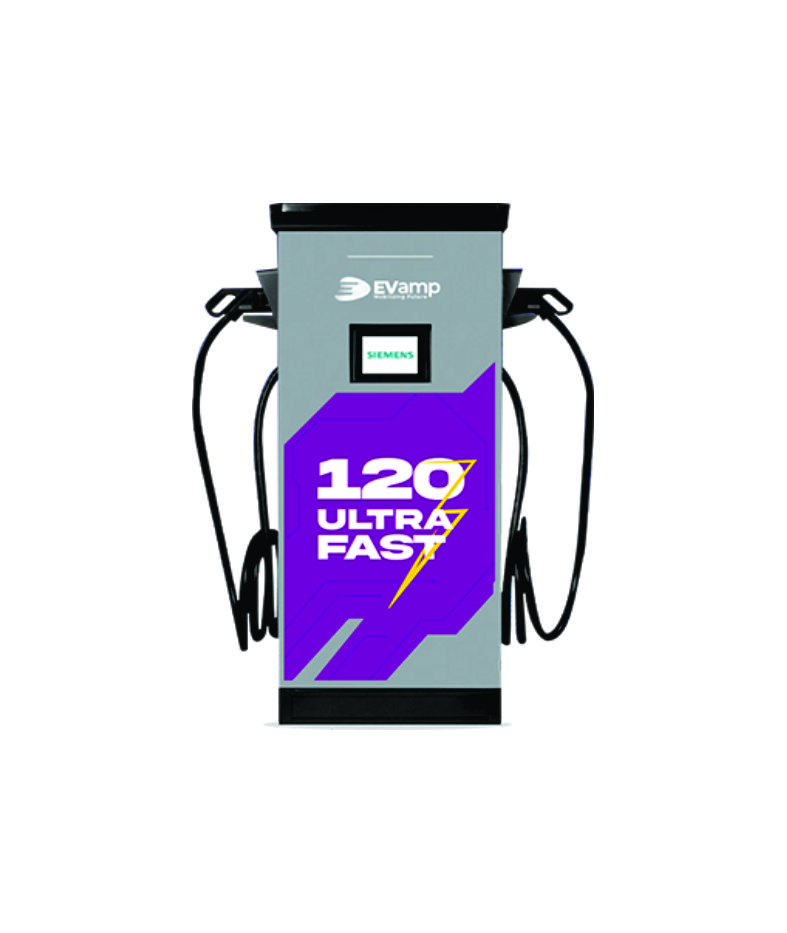

120KW CCS CHARGER
Power Rating: 120KW
Connector Type: CCS-2
Compatibility:
Description
The 120kW CCS Fast Charger is a high-performance DC charging solution designed for highways, EV dealerships, bus depots, and commercial fleet terminals. With dual CCS2 connectors and dynamic power sharing, it can deliver the full 120kW to a single vehicle or distribute charging power between two EVs.
Built with future-proof technology, the charger supports the latest standards like OCPP 1.6J and ISO 15118, enabling seamless communication, plug & charge, and smart energy management. It is engineered for reliability, safety, and scalability, making it an ideal choice for high-demand public and commercial EV charging infrastructure.
Specifications
| Input Supply Requirement | 3-Phase, 415V AC ±10%, 50Hz |
|---|---|
| Operating Voltage | 415V AC (±10%) |
| Charging Voltage | 200 – 1000V DC |
| Max Charging Current | Up to 250A |
| Max Power Output | 120kW |
| Socket Type / Output Connector | CCS2 (Dual Gun, 5m cable) |
| Vehicles Charged | EV Passenger Cars, eBuses, eTrucks, Commercial Fleets |
| Ingress Protection | IP54 |
| Operating Temperature | -10°C to +55°C |
| Energy Metering | Class 1 (IEC 62053-21, IEC 62053-22 compliant) |
| Ideal Consumption | ≥ 95% efficiency (Peak) |
| Authentication | OTP, RFID, Autocharge, OCPP 1.6J, Modbus TCP, ISO 15118 Plug & Charge |
| Connectivity | Ethernet, 3G, 4G, Wi-Fi |
| Screen / User Interface | 15-inch Touchscreen HMI + Status LED |
| Emergency Shutdown Button | Yes |
| Mounting | Floorstanding (Foundation: 900 x 680 mm, approx. weight 350kg) |
Frequently Asked Questions
Can this 120kW charger support buses and trucks as well as cars?
Yes, it is designed for all types of EVs, including cars, eBuses, and eTrucks, making it ideal for fleet and highway applications.
Can I charge two EVs at the same time?
Absolutely. The charger supports dynamic power sharing, so two vehicles can charge simultaneously with optimized distribution of power.
Is the charger suitable for outdoor installation?
Yes, it has IP54 protection and a rugged design, ensuring safe and reliable operation in outdoor environments.
Does it support future EV technologies?
Yes, it’s future-proof with OCPP 1.6J and ISO 15118 support, including plug & charge functionality for next-gen EVs.
How user friendly is the charger for drivers?
Very easy to use it comes with a 15-inch touchscreen interface, RFID authentication, and multiple payment options for a smooth user experience.
