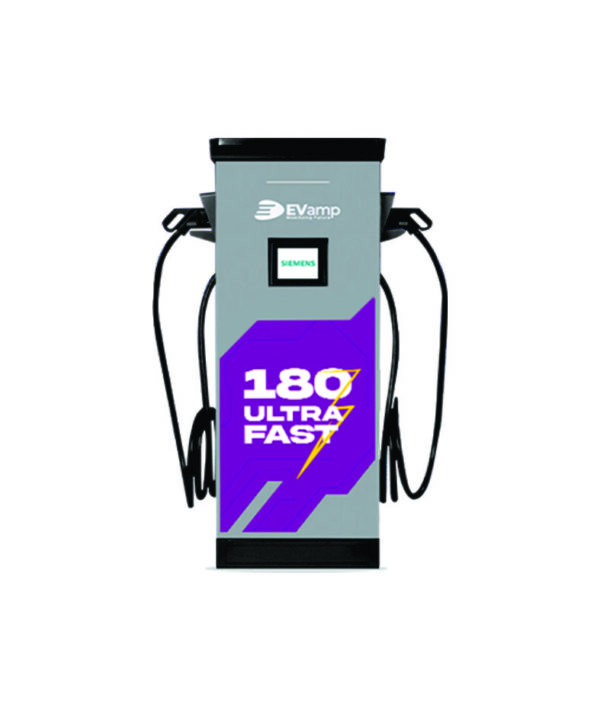

180KW CCS CHARGER
Power Rating: 180KW
Connector Type: CCS-2
Compatibility:
Description
The 180kW DC Fast Charger is a high-performance solution designed for eBus and eTruck depots, highways, and large-scale public charging stations. With 2 x CCS2 connectors, it supports dynamic load distribution—delivering 180kW on a single gun or 90kW per gun in dual mode.
Engineered for all-weather outdoor use with IP54 protection, it features a 9.7” touchscreen interface, RFID-based user access, and advanced connectivity options including OCPP 1.6J and ISO 15118 support.
Built with robust safety systems and peak reliability, this charger ensures fast turnaround times for heavy-duty EVs while remaining future-ready for evolving fleet and public charging demands.
Specifications
| Input Supply Requirement | Three Phase L1+L2+L3+N+PE |
|---|---|
| Operating Voltage | 415 V AC ±10%, 50 Hz |
| Charging Voltage | 200 – 1,000 V DC |
| Max Charging Current | Up to 250 A |
| Max Power Output | 180 kW |
| Socket Type / Output Connector | CCS2 / CHAdeMO / GB/T (depending on configuration), 6 m cable |
| Vehicles Charged | 4W (Passenger cars, Buses, Commercial EVs, Fleets) |
| Ingress Protection | IP54 |
| Operating Temperature | –10 °C to +50 °C |
| Energy Metering | Integrated, IEC-compliant (accuracy Class 1) |
| Ideal Consumption | ≥ 94.5% at full load |
| Authentication | RFID (offline & online), OCPP 1.6J, Modbus TCP, ISO 15118 Plug & Charge |
| Connectivity | Ethernet, 3G, 4G |
| Screen / User Interface | 9.7-Inch Touchscreen HMI + Status LEDs |
| Emergency Shutdown Button | Yes |
| Mounting | Floor standing (Foundation: 800 × 900 mm) |
Frequently Asked Questions
Can these chargers support two EVs at the same time?
Yes! All models support dual charging with dynamic power sharing.
Are these chargers suitable for outdoor use in India?
Absolutely. They come with IP54-rated protection and operate from –10°C to +50°C—perfect for Indian conditions.
How do I start a charging session?
Simply tap your RFID card or follow instructions on the touchscreen interface. Online payment options are also available.
Can they be monitored or controlled remotely?
📡 Yes! These chargers are CMS compatible via OCPP 1.6J and can be managed remotely through backend software.
Will these chargers work with future EVs?
🚗 Yes! They support CCS2 and are future-ready with ISO 15118 compatibility for smart and next-gen EVs.
