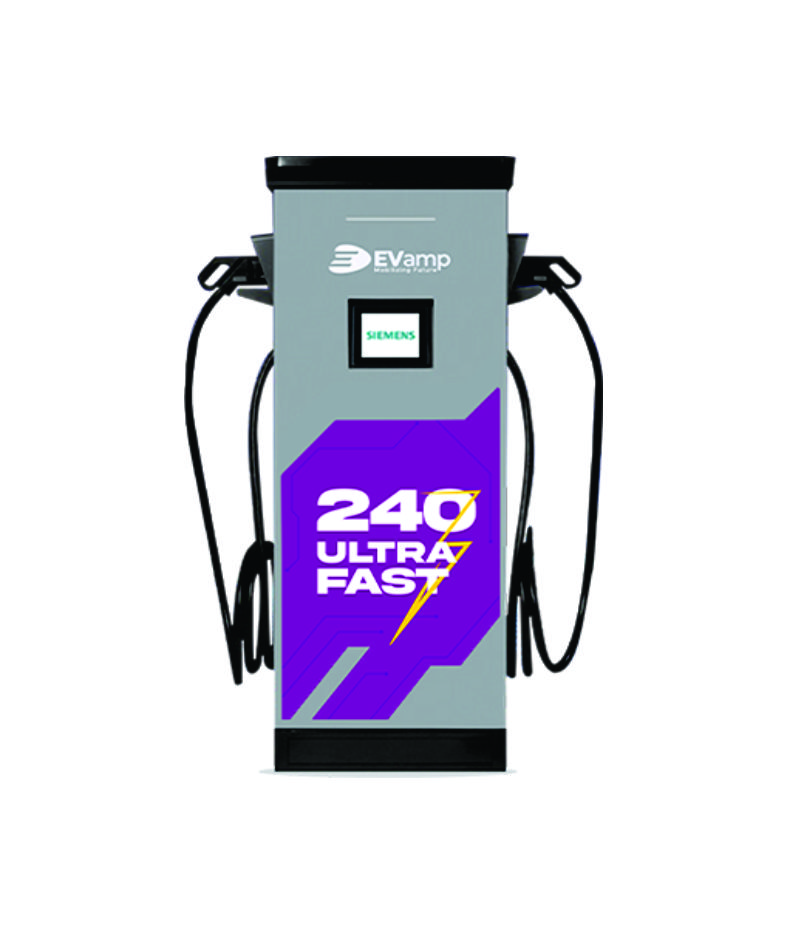

240KW CCS CHARGER
Power Rating: 240KW
Connector Type: CCS-2
Compatibility:
Description
The 240kW DC Fast Charger is an ultra-high-power solution designed for eBus and eTruck depots, expressways, and heavy-duty public charging stations. With dual CCS2 connectors, it offers flexible dynamic output—240kW through a single gun or 120kW per gun in parallel operation.
Equipped with a large 9.7” touchscreen HMI, RFID-based user access, and Ethernet/4G connectivity, it ensures seamless operation and compatibility with global charging standards including IEC 61851 and ISO 15118.
Built for Indian conditions, the charger features a durable MS enclosure with IP54 protection and incorporates advanced electrical safety systems, delivering long-lasting performance and maximum reliability in demanding environments.
Specifications
| Input Supply Requirement | Three Phase L1+L2+L3+N+PE |
|---|---|
| Operating Voltage | 415 V AC ±10%, 50 Hz |
| Charging Voltage | 200 – 1,000 V DC |
| Max Charging Current | Up to 250 A |
| Max Power Output | 120 kW |
| Socket Type / Output Connector | CCS2 / CHAdeMO (depending on configuration) – with 6 m cable |
| Vehicles Charged | 4W (Passenger Cars, Buses, Commercial Fleets) |
| Ingress Protection | IP54 |
| Operating Temperature | –10 °C to +50 °C |
| Energy Metering | Integrated, IEC-compliant (accuracy Class 1) |
| Ideal Consumption | ≥ 94.5% at full load |
| Authentication | RFID (offline & online), OCPP 1.6J, Modbus TCP, ISO 15118 Plug & Charge |
| Connectivity | Ethernet, 3G, 4G |
| Screen / User Interface | 9.7-Inch Touchscreen HMI + Status LEDs |
| Emergency Shutdown Button | Yes |
| Mounting | Floor standing (Foundation: 800 × 500 mm) |
Frequently Asked Questions
Can these chargers support two EVs at the same time?
Yes! All models support dual charging with dynamic power sharing.
Are these chargers suitable for outdoor use in India?
Absolutely. They come with IP54-rated protection and operate from –10°C to +50°C—perfect for Indian conditions.
How do I start a charging session?
Simply tap your RFID card or follow instructions on the touchscreen interface. Online payment options are also available.
Can they be monitored or controlled remotely?
📡 Yes! These chargers are CMS compatible via OCPP 1.6J and can be managed remotely through backend software.
Will these chargers work with future EVs?
🚗 Yes! They support CCS2 and are future-ready with ISO 15118 compatibility for smart and next-gen EVs.
