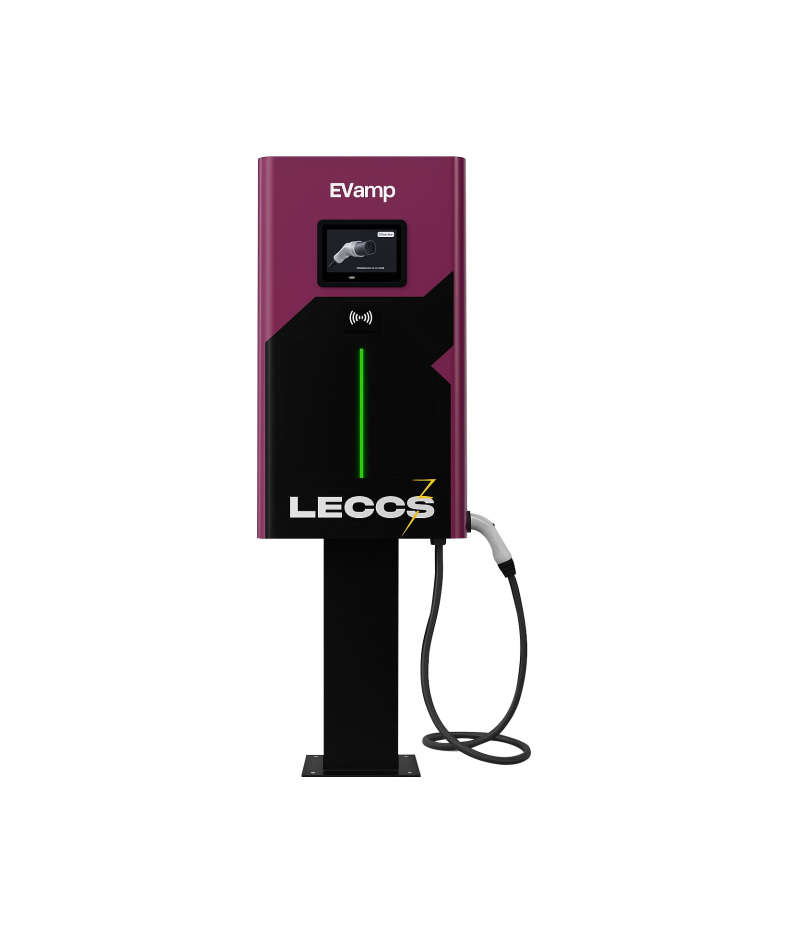

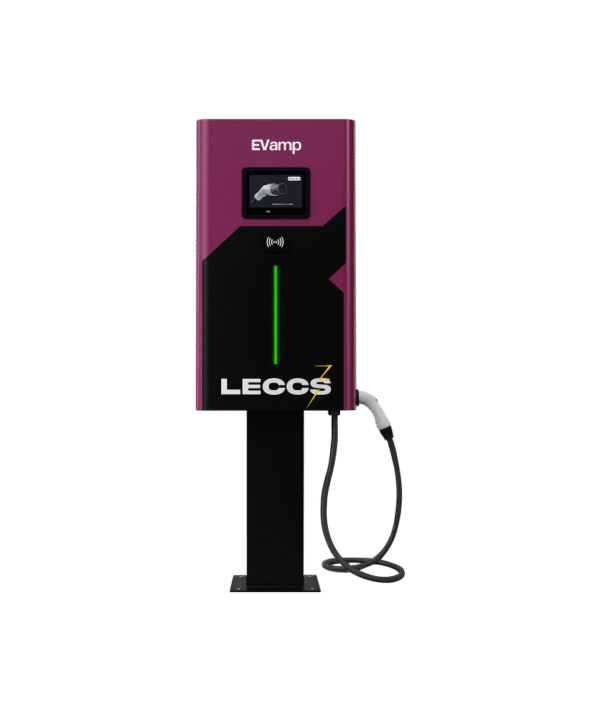

3.3KW LEVDC CHARGER
Power Rating: 3.3KW
Connector Type: 6 & 7
Compatibility:
Description
The 3.3kW LEV DC EV Charger is a smart, compact charging solution built for modern 2-wheeler and 3-wheeler EVs. Supporting both Type 6 and Type 7 connectors as per IS 17017 standards, it delivers dual output up to 60A, making it ideal for fast, efficient charging in residential, commercial, and fleet environments.
No complex setup – simply plug in and start charging. The charger features a 7-inch touchscreen for easy navigation, along with multiple charging modes like Plug & Play, Scan & Charge, and Wallet Authentication.
With OCPP 1.6+ compatibility, built-in Wi-Fi/4G connectivity, and real-time CMS diagnostics, it ensures a connected and secure charging experience. Its weatherproof design and advanced safety protections guarantee reliable performance in all conditions.
Specifications
| Input Supply Requirement | Single Phase (L + N + PE) |
|---|---|
| Operating Voltage | 80 – 265 VAC, 16A Max |
| Charging Voltage | 30 – 120 VDC (0–30A) |
| Max Charging Current | 30A |
| Max Power Output | 3.3 Kw DC |
| Socket Type / Output Connector | TYPE 7 LECCS Gun (IS 17017-2-7), TYPE 6 LEVDC Gun (IS 17017-2-6) |
| Vehicles Charged | 2W, 3W (DC Fast Charging) |
| Ingress Protection | IP54 |
| Operating Temperature | –10°C to +55°C |
| Energy Metering | Class-1 compliant (IEC 62052-11, IEC 62053-21/23) |
| Ideal Consumption | Standby < 10W |
| Authentication | RFID, Wallet Authentication, OCPP 1.6J (Upgradeable to OCPP 2.0), Plug & Play |
| Connectivity | Wi-Fi (2.4GHz), GSM/3G/4G LTE (M2M SIM) |
| Screen / User Interface | 7-inch High Resolution Touch Screen |
| Emergency Shutdown Button | Yes |
| Mounting | Wall Mount / Pole Mount |
Frequently Asked Questions
Can I use this at home with my regular 16A plug?
Yes! Just plug it into your 16A socket—no wiring or installation required.
Will it work with any EV?
Yes! It’s compatible with all EVs that support 3.3kW AC input (cars, 2-wheelers & 3-wheelers).
Is it waterproof and safe for outdoors?
Absolutely! With an IP54-rated body and surge protection, it’s built for Indian weather.
How do I know if charging is working?
The OLED display shows real-time charging status, power usage, and fault codes.
Can I monitor or control it remotely?
📡 Yes! These chargers are compatible via OCPP 1.6/2.0J and can be managed remotely through backend software.
