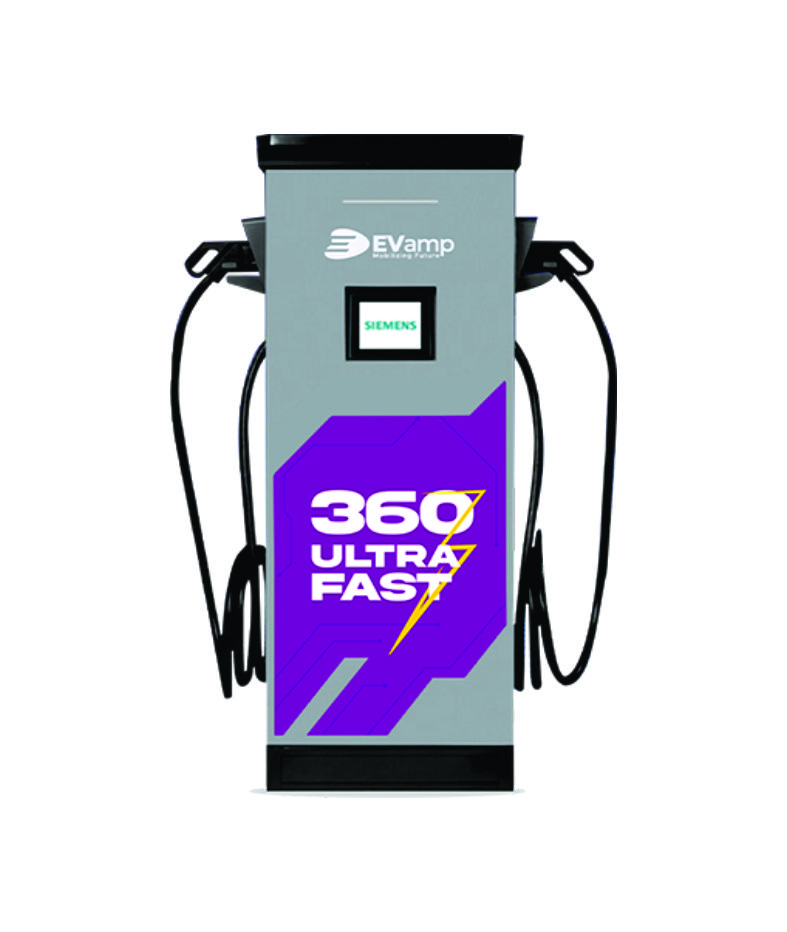

360KW CCS CHARGER
Power Rating: 360KW
Connector Type: CCS-2
Compatibility:
Description
The 360kW DC Ultra-Fast Charger is a high-capacity solution designed for eBus and eTruck depots, highways, and high-demand public charging hubs. Supporting dual CCS2 connectors, it delivers 360kW through a single gun or 180kW per gun in dual mode, ensuring rapid turnaround for heavy-duty EVs.
Equipped with a 10” touchscreen HMI, RFID/OTP/QR-based authentication, and OCPP 1.6J with upgradeability to 2.0, it offers advanced interoperability and seamless network integration.
Built with a heavy-duty, weather-resistant design, the charger provides maximum reliability, scalability, and safety, making it future-ready for large EV fleets and continuous operation in demanding environments.
Specifications
| Input Supply Requirement | Three Phase L1+L2+L3+N+PE |
|---|---|
| Operating Voltage | 415 V AC ±10%, 50 Hz |
| Charging Voltage | 100 – 1,000 V DC |
| Max Charging Current | Up to 350 A (per cable) |
| Max Power Output | 360KW |
| Socket Type / Output Connector | CCS2 / CHAdeMO (depending on configuration), 5 m cable |
| Vehicles Charged | 4W (Passenger Cars, Buses, Commercial Fleets, Heavy EVs) |
| Ingress Protection | IP54 |
| Operating Temperature | –10 °C to +50 °C |
| Energy Metering | Built-in, IEC Compliant (Class-1 Accuracy) |
| Ideal Consumption | ≥ 95% efficiency at 100% load |
| Authentication | RFID (ISO/IEC 14443A/B, MIFARE 1K), OCPP 1.6J / 2.0, ISO 15118 Plug & Charge |
| Connectivity | Ethernet, Wi-Fi, GSM, 4G LTE |
| Screen / User Interface | 9.7-Inch Touchscreen HMI + LED Indicators |
| Mounting | Floor standing (Foundation: 800 × 900 mm) |
Frequently Asked Questions
Can these chargers support two EVs at the same time?
Yes! All models support dual charging with dynamic power sharing.
Are these chargers suitable for outdoor use in India?
Absolutely. They come with IP54-rated protection and operate from –10°C to +50°C—perfect for Indian conditions.
How do I start a charging session?
Simply tap your RFID card or follow instructions on the touchscreen interface. Online payment options are also available.
Can they be monitored or controlled remotely?
📡 Yes! These chargers are CMS compatible via OCPP 1.6J and can be managed remotely through backend software.
Will these chargers work with future EVs?
🚗 Yes! They support CCS2 and are future-ready with ISO 15118 compatibility for smart and next-gen EVs.
