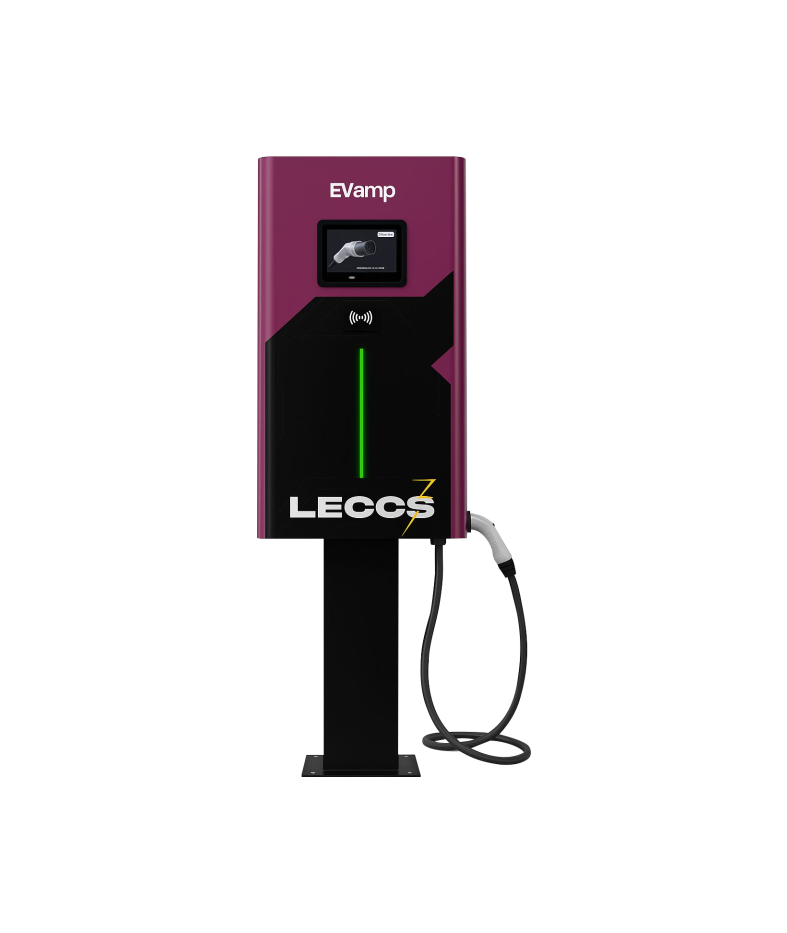

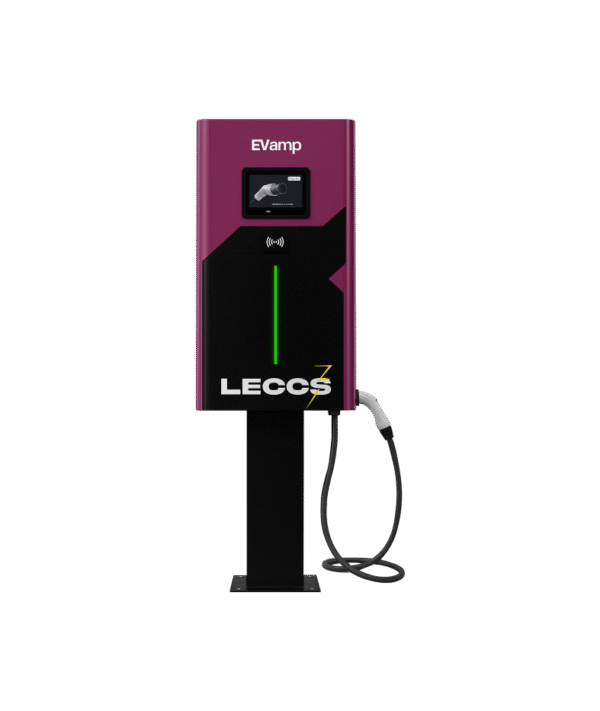

6.4KW LEVDC CHARGER
Power Rating: 6.4KW
Connector Type: 6
Compatibility:
Description
6.4kW LEV DC Charger is a compact and smart charging solution for electric 2-wheelers and 3-wheelers. With dual connector support (Type 6 & 7) as per IS 17017, it delivers fast DC charging at 30–120V up to 60A.
It comes with a 7-inch touch display, OCPP 1.6+ compatibility, and Wi-Fi/4G SIM for seamless CMS integration. Built-in Class-1 energy metering, surge protection, and emergency stop ensure safety and accuracy.
Wall or pole mountable, this AIS 138-2 & IEC certified charger is ideal for homes, fleets, and public stations.
Specifications
| Input Supply Requirement | Single Phase (P/N/PE) |
|---|---|
| Operating Voltage | 80–265 VAC (Single Phase) |
| Charging Voltage | 30–120 VDC |
| Max Charging Current | 0–60A DC |
| Max Power Output | 6.6KW |
| Socket Type / Output Connector | TYPE 7 LECCS Gun (IS 17017-2-7), TYPE 6 LEVDC Gun (IS 17017-2-6) |
| Vehicles Charged | 2W,3W |
| Ingress Protection | IP54 / IK10 (typical for outdoor DC chargers) |
| Operating Temperature | –25°C to +55°C |
| Energy Metering | Class-1 compliant (IEC 62052-11, IEC 62053-21/23) |
| Ideal Consumption | < 5W (standby) |
| Authentication | RFID (ISO/IEC 14443A/B, MIFARE 1K), Mobile App, OCPP 1.6J / 2.0 |
| Connectivity | Wi-Fi (2.4GHz), GSM/3G/4G LTE (M2M SIM) |
| Screen / User Interface | 7-inch High Resolution Touch Screen |
| Emergency Shutdown Button | Yes |
| Mounting | Wall Mount / Poll Mount |
Frequently Asked Questions
Will this work with my e-bike or e-rickshaw?
Yes! It supports most Indian 2-wheelers and 3-wheelers with Type 6 or Type 7 DC charging ports.
Is this charger fast? How long will it take?
It provides up to 6.6kW output, which is almost double the speed of regular DC001 chargers— perfect for faster turnaround.
Can I control this charger from my phone or backend?
Absolutely! It supports Wi-Fi, 4G SIM, and connects to any OCPP CMS platform for remote monitoring and diagnostics.
Is it safe to use in public or outdoor places?
Yes! It comes with earth fault, surge protection, emergency stop, and works from -20°C to 55°C, rain or shine.
How do I start charging?
Just scan, tap, or plug— you can even use wallet-based charging or allow free plug and-play mode.
