Power Rating: 60KW
Connector Type: CCS-2
Compatibility:

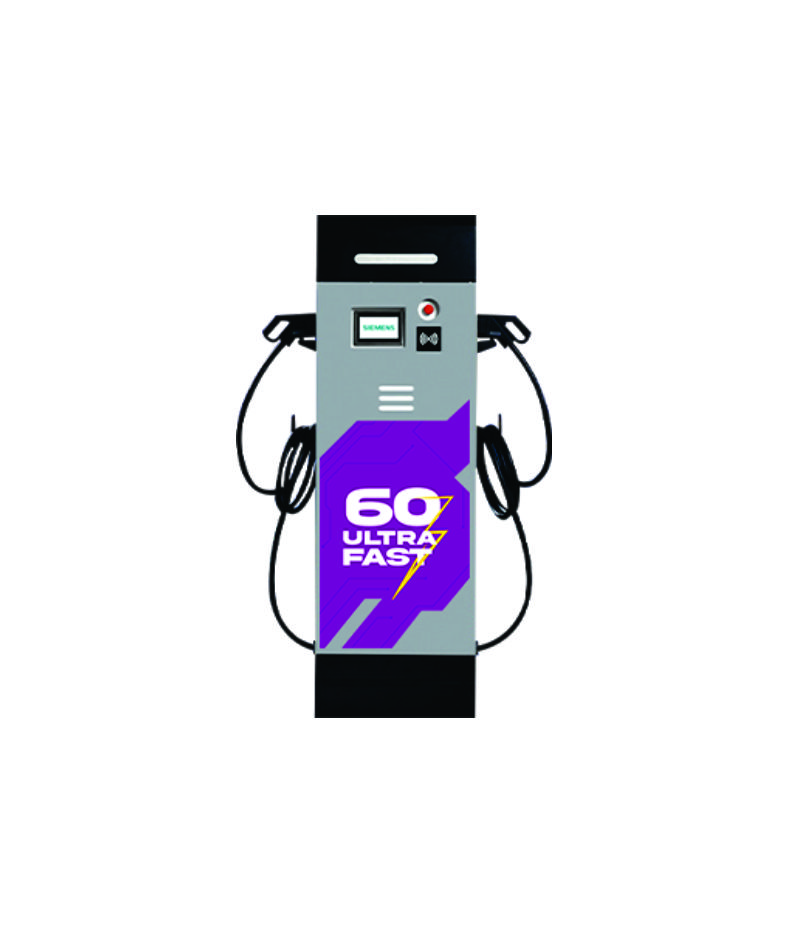

The 60kW DC Fast Charger is a compact and efficient solution designed for public charging stations, dealerships, societies, and commercial hubs. With dual CCS2 connectors, it delivers either the full 60kW on a single gun or 30kW per gun in dual mode, ensuring flexibility for different charging needs.
Supporting OCPP 1.6J, it offers seamless CMS integration, remote monitoring, and dynamic power distribution for smart load management. Its user-friendly interface enables reliable and convenient charging experiences for all EV users.
Engineered for indoor and outdoor environments, it includes advanced protections such as over/under voltage, short-circuit, and earth leakage safeguards, making it a safe, durable, and future-ready charging solution.
| Input Supply Requirement | Three Phase L1+L2+L3+N+PE |
|---|---|
| Operating Voltage | 415 V AC ±10%, 50 Hz |
| Charging Voltage | 200 – 1,000 V DC |
| Max Charging Current | Up to 150 A |
| Max Power Output | 60 kW |
| Socket Type / Output Connector | CCS2 / CHAdeMO (with 5 m cable) |
| Vehicles Charged | 4W (Passenger Cars, Commercial EVs, Fleet Vehicles) |
| Ingress Protection | IP54 |
| Operating Temperature | –10 °C to +50 °C |
| Energy Metering | Class-1 Energy Metering (IEC 62052-11, IEC 62053-21/23 compliant) |
| Ideal Consumption | ≥ 94.5% at full load |
| Authentication | RFID (offline & online), OCPP 1.6J, Modbus TCP, ISO 15118 Plug & Charge |
| Connectivity | Ethernet, 3G, 4G |
| Screen / User Interface | 7-inch Touchscreen HMI + Status LED |
| Emergency Shutdown Button | Yes |
| Mounting | Floor-standing (foundation 650 × 390 mm) |
The EVamp 60 kW CCS DC Fast Charger is built for commercial applications requiring speed, reliability, and smart control. It supports CCS 2 connectors with OCPP 1.6 integration for remote monitoring, dynamic load balancing, and payment integration. Ideal for fleet operators, dealerships, and public charging stations across India, this charger offers high uptime and future-ready connectivity.
Yes! All models support dual charging with dynamic power sharing.
Absolutely. They come with IP54-rated protection and operate from –10°C to +50°C—perfect for Indian conditions.
Simply tap your RFID card or follow instructions on the touchscreen interface. Online payment options are also available.
📡 Yes! These chargers are CMS compatible via OCPP 1.6J and can be managed remotely through backend software
🚗 Yes! They support CCS2 and are future-ready with ISO 15118 compatibility for smart and next-gen EVs.
