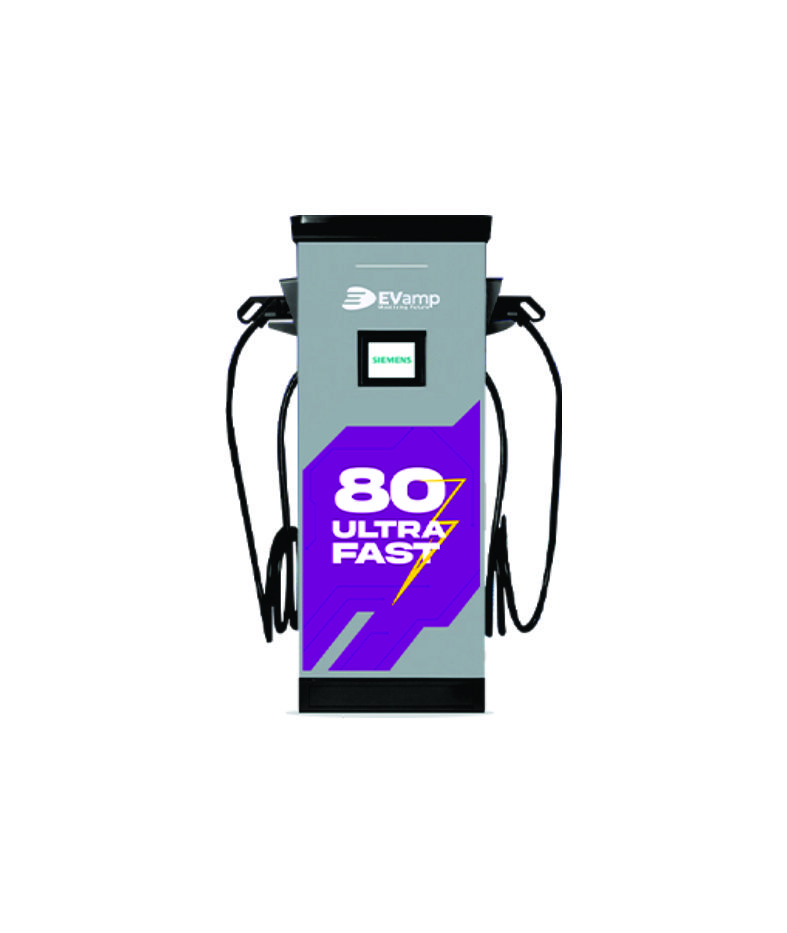

80KW CCS CHARGER
Power Rating: 80KW
Connector Type: CCS-2
Compatibility:
Description
The 80kW DC Fast Charger is a high-capacity, compact solution designed for public charging stations, commercial complexes, and EV fleet hubs. With dual CCS2 connectors, it offers either the full 80kW on a single gun or 40kW per gun in dual mode, ensuring fast and flexible charging for multiple vehicles.
Equipped with OCPP 1.6J compatibility, Ethernet and 4G connectivity, and dynamic power sharing, it enables seamless integration with CMS platforms, real-time monitoring, and efficient load management. Its intuitive 7” touchscreen enhances user experience with simple operation and live status updates.
Engineered to withstand Indian environmental conditions, it complies with IEC 61851 and ISO 15118 standards while offering advanced protections such as over/under voltage, residual current detection, and emergency shutdown, making it a safe, reliable, and future-ready charging solution.
Specifications
| Input Supply Requirement | Three Phase L1+L2+L3+N+PE |
|---|---|
| Operating Voltage | 415 V AC ±10%, 50 Hz |
| Charging Voltage | 200 – 1,000 V DC |
| Max Charging Current | Up to 200 A |
| Max Power Output | 80KW |
| Socket Type / Output Connector | CCS2 / CHAdeMO (depending on configuration), 5 m cable |
| Vehicles Charged | 4W (Passenger cars, Commercial EVs, Fleets) |
| Ingress Protection | IP54 |
| Operating Temperature | –10 °C to +50 °C |
| Energy Metering | Integrated, Class-1 (IEC 62052-11, IEC 62053-21/23 compliant) |
| Ideal Consumption | ≥ 94.5% at full load |
| Authentication | RFID (offline & online), OCPP 1.6J, Modbus TCP, ISO 15118 Plug & Charge (optional) |
| Connectivity | Ethernet, 3G, 4G |
| Screen / User Interface | 7-Inch Touchscreen HMI + Status LEDs |
| Emergency Shutdown Button | Yes |
| Mounting | Floor-standing (foundation: 615 × 300 mm) |
Frequently Asked Questions
Can these chargers support two EVs at the same time?
Yes! All models support dual charging with dynamic power sharing.
Are these chargers suitable for outdoor use in India?
Absolutely. They come with IP54-rated protection and operate from –10°C to +50°C—perfect for Indian conditions.
How do I start a charging session?
Simply tap your RFID card or follow instructions on the touchscreen interface. Online payment options are also available.
Can they be monitored or controlled remotely?
📡 Yes! These chargers are compatible via OCPP 1.6J and can be managed remotely through backend software.
Will these chargers work with future EVs?
🚗 Yes! They support CCS2 and are future-ready with ISO 15118 compatibility for smart and next-gen EVs.
